Xinshengli Grain Dryer 5HPX-15

The low-temperature batch-type circulating grain dryer uses a constant temperature ventilation device, an automatic and uniform temperature adjustment method, and indirect heating with hot air from all directions, so that the grains are free of any pollution during the drying process, and the drying temperature is uniform, and the color and smell are excellent. It is an essential artifact for grain drying. The low-temperature batch-type circulating grain dryer is suitable for drying wheat, rice, corn and other legumes and seeds.

新生力

Parameter configuration

Dryer model	5HPX-15
Dryer type	Batch cycle
Drying capacity t.%/h	9-11(rice, wheat)	Processing capacity kg/h		≥800
Capacity (t)	Rice (bulk density 560kg/m³)			15
	Wheat (bulk density 700kg/m³)			18
Volume m³;	27	Machine weight (kg)		3075
Machine R	Drying machine body: 2007×2480×9010 Overall dimensions: 2583×4321×10000
Combustion furnace	Type		Indirect type
	Ignition method		Artificial ignition
	Fuel consumption kg/h		≤60(rice husk)
Fuel used	Biomass (rice husk, straw, firewood), coal
Supporting power supply	Three-phase 380V/50HZ
Supporting power		Total power (kW)		9.95
Performance	Feeding time	Rice/wheat (min)		80-90/80-90
	Discharge time	Rice/wheat (min)		80-90/80-90
	Hourly precipitation rate	Rice/wheat (%/h)		0.5-0.8/0.5-0.8
Safety configuration	Safety protection device, temperature control device, electrical overload protection device, leakage protection device, fire-fighting equipment.

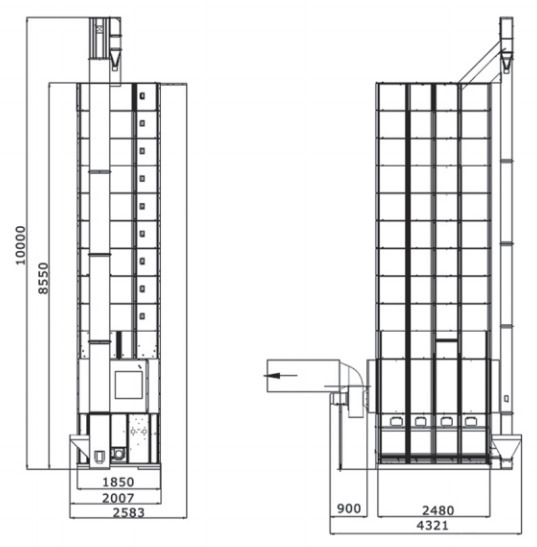

Structure diagram
